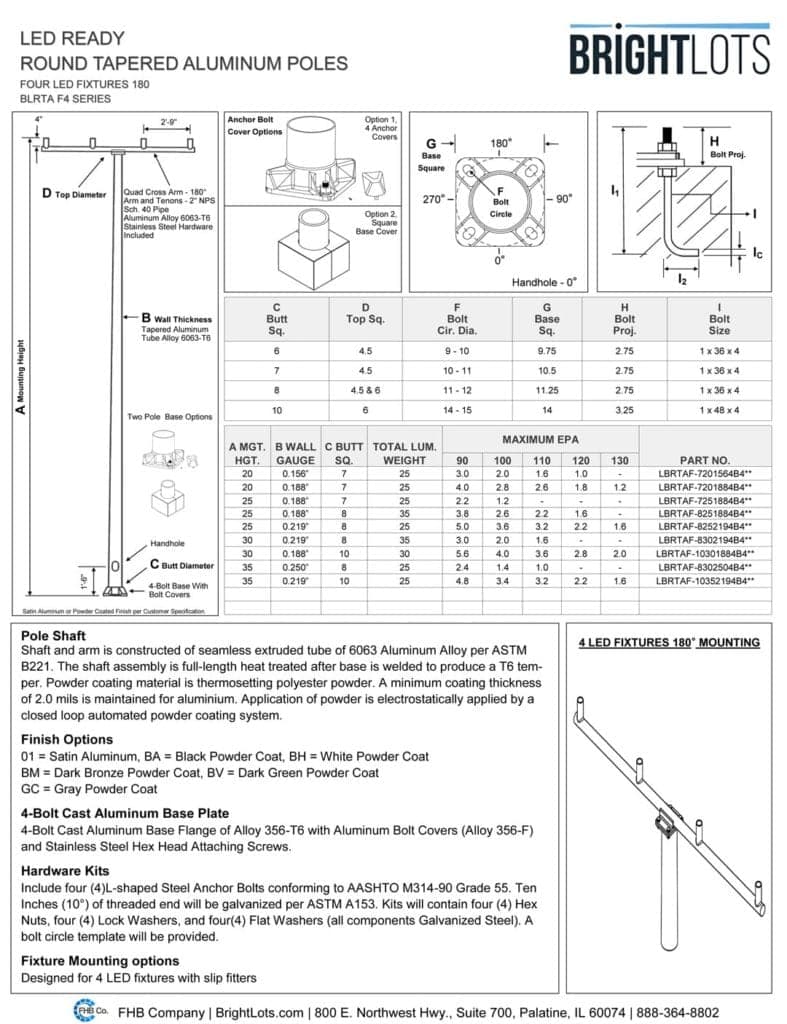

LBRTAF-7201564B4** 20 ft. 7" Butt Dia.,0.156 ga. 4 Fixture 180, LED Ready Light Pole

POLE ASSEMBLY POLE FINISH Height: 20 ft Gauge: 0.156″ Bottom OD: 7″ Bolt Circle: 10″ – 11″ Base Square: 10.5″ Bolt Projection: 2.75″ Anchor Bolts: 1″ x 36″ x 4″ Pole Shaft: Shaft and arm are constructed of a seamless extruded tube of 6063 Aluminum Alloy per ASTM B221. The shaft assembly is full-length heat treated after the base is welded to produce a T6 temper. The powder coating material is thermosetting polyester powder. A minimum coating thickness of 2.0 mils is maintained for aluminum. The application of powder is electrostatically applied by a closed-loop automated powder coating system. Finish Options: Dark Bronze, Black, Gray, White, and Satin Aluminum finish available. Please call for details. (888)364-8802 4-Bolt Cast Aluminum Base Plate:4-Bolt Cast Aluminum Base Flange of Alloy 356-T6 with Aluminum Bolt Covers (Alloy 356-F) and Stainless Steel Hex Head Attaching Screws. Hardware Kits: Include four (4)L-shaped Steel Anchor Bolts conforming to AASHTO M314-90 Grade 55. Ten Inches (10°) of the threaded end will be galvanized per ASTM A153. Kits will contain four (4) Hex Nuts, four (4) Lock Washers, and four(4) Flat Washers (all components Galvanized Steel). A bolt circle template will be provided. Fixture Mounting options: Designed for 4 LED fixtures with slip fitters A MGT. HGT.B WALL GA.C BUTT SQ. TOTAL LUM. WT.Max. EPA 90 Max. EPA 100Max. EPA 110 Max. EPA 120Max. EPA 130PART NO. 200.156”7253.02.01.61.0-LBRTAF-7201564B4** 200.188”7254.02.82.61.81.2LBRTAF-7201884B4** 250.188”7252.21.2---LBRTAF-7251884B4** 250.188”8353.82.62.21.6-LBRTAF-8251884B4** 250.219”8255.03.63.22.21.6LBRTAF-8252194B4** 300.219”8353.02.01.6--LBRTAF-8302194B4** 300.188”10305.64.03.62.82.0LBRTAF-10301884B4** 350.250”8252.41.41.0--LBRTAF-8352504B4** 350.219”10254.83.43.22.21.6LBRTAF-10352194B4**
