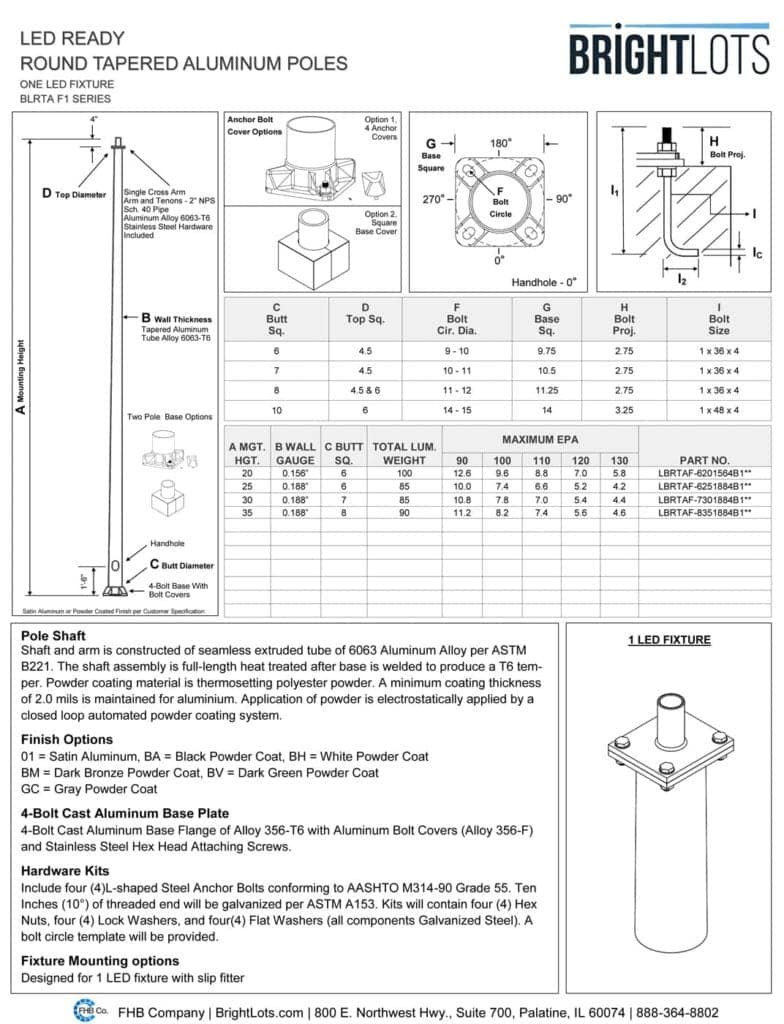

LBRTAF-6251884B1** 25 ft. 6" Butt Dia.,0.188 ga. 1 Fixture, LED Ready Light Pole

POLE ASSEMBLY POLE FINISH Height: 25 ft Gauge: 0.188″ Bottom OD: 6″ Bolt Circle: 9″ – 10″ Base Square: 9.75″ Bolt Projection: 2.75″ Anchor Bolts: 1″ x 36″ x 4″ Pole Shaft: Shaft and arm are constructed of a seamless extruded tube of 6063 Aluminum Alloy per ASTM B221. The shaft assembly is full-length heat treated after the base is welded to produce a T6 temper. The powder coating material is thermosetting polyester powder. A minimum coating thickness of 2.0 mils is maintained for aluminum. The application of powder is electrostatically applied by a closed-loop automated powder coating system. Finish Options: Dark Bronze, Black, Gray, White, and Satin Aluminum finish available. Please call for details. (888)364-8802 4-Bolt Cast Aluminum Base Plate:4-Bolt Cast Aluminum Base Flange of Alloy 356-T6 with Aluminum Bolt Covers (Alloy 356-F) and Stainless Steel Hex Head Attaching Screws. Hardware Kits: Include four (4)L-shaped Steel Anchor Bolts conforming to AASHTO M314-90 Grade 55. Ten Inches (10°) of the threaded end will be galvanized per ASTM A153. Kits will contain four (4) Hex Nuts, four (4) Lock Washers, and four(4) Flat Washers (all components Galvanized Steel). A bolt circle template will be provided. Fixture Mounting options: Designed for 1 LED fixture with slip fitters A MGT. HGT.B WALL GA.C BUTT SQ. TOTAL LUM. WT.Max. EPA 90 Max. EPA 100Max. EPA 110 Max. EPA 120Max. EPA 130PART NO. 200.156”610012.69.68.87.05.8LBRTAF6201564B1** 250.188”68510.07.46.65.24.2LBRTAF-6251884B1** 300.188”78510.87.87.05.44.4LBRTAF-7301884B1** 350.188”89011.28.27.45.64.6LBRTAF-8351884B1**
