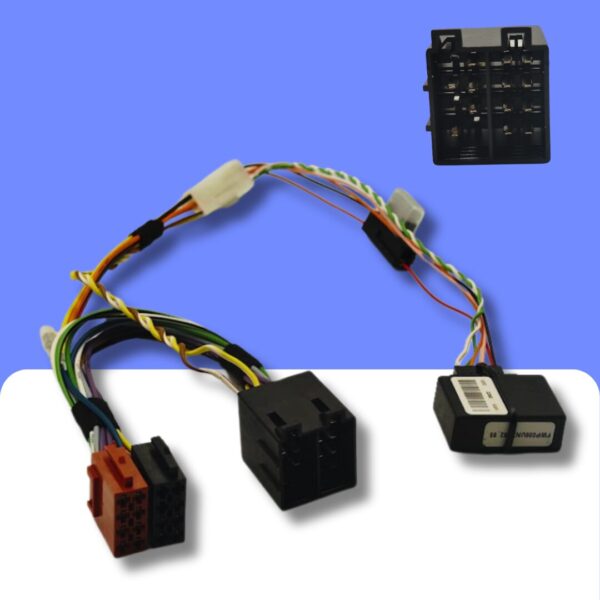

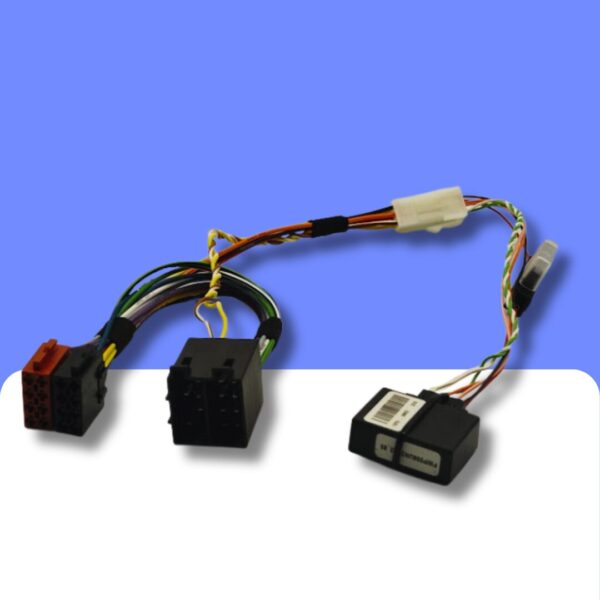

Fiat, Alfa Romeo, Lancia CANBUS radio ISO adapter lead cable

Part Number: ISO-FIA-001 ISO adapter harness for Fiat Group vehicles with ISO connections in the back of the original radio and a CANBUS turn on for the original radio. This harness provides 12v to an aftermarket radio when the key is turned to the ignition position and stops the odometer flashing once the original radio has been removed. This lead has a built in CANBUS interface which provides a ignition power supply which will power the radio from the second position of the ignition barrel. the interface will continue to give an ignition feed to the radio until the key is turned back to the off position. This interface also provides an illumination output to dim the radio when the headlights are on and includes a break out wire to power an amplified antenna if the vehicle is fitted with one.
